SoundLinker™ – Auracast™ Broadcast Audio Transmitter
SoundLinker™ is a state-of-the-art Auracast™ broadcast audio transmitter designed for outstanding audio performance and ultra-efficient wireless operation. Powered by the advanced Bluetooth® LC3 codec, it supports both Auracast™ BIS and CIS modes, delivering high-quality sound with minimal power consumption and ultra-low latency.
Built for versatility, SoundLinker™ integrates enhanced noise reduction technology to ensure crystal-clear audio even in noisy environments. It also functions as a highly efficient remote microphone, making it ideal for presentations, lectures, and live performances.
Key Features
- Supports Auracast™ BIS (broadcast) and CIS (1-to-1) modes
- Advanced Bluetooth® LC3 codec for high audio quality and low power consumption
- Ultra-low latency of approximately 40ms
- Enhanced noise reduction for clear audio in noisy environments
- Highly efficient remote microphone for long-distance audio capture

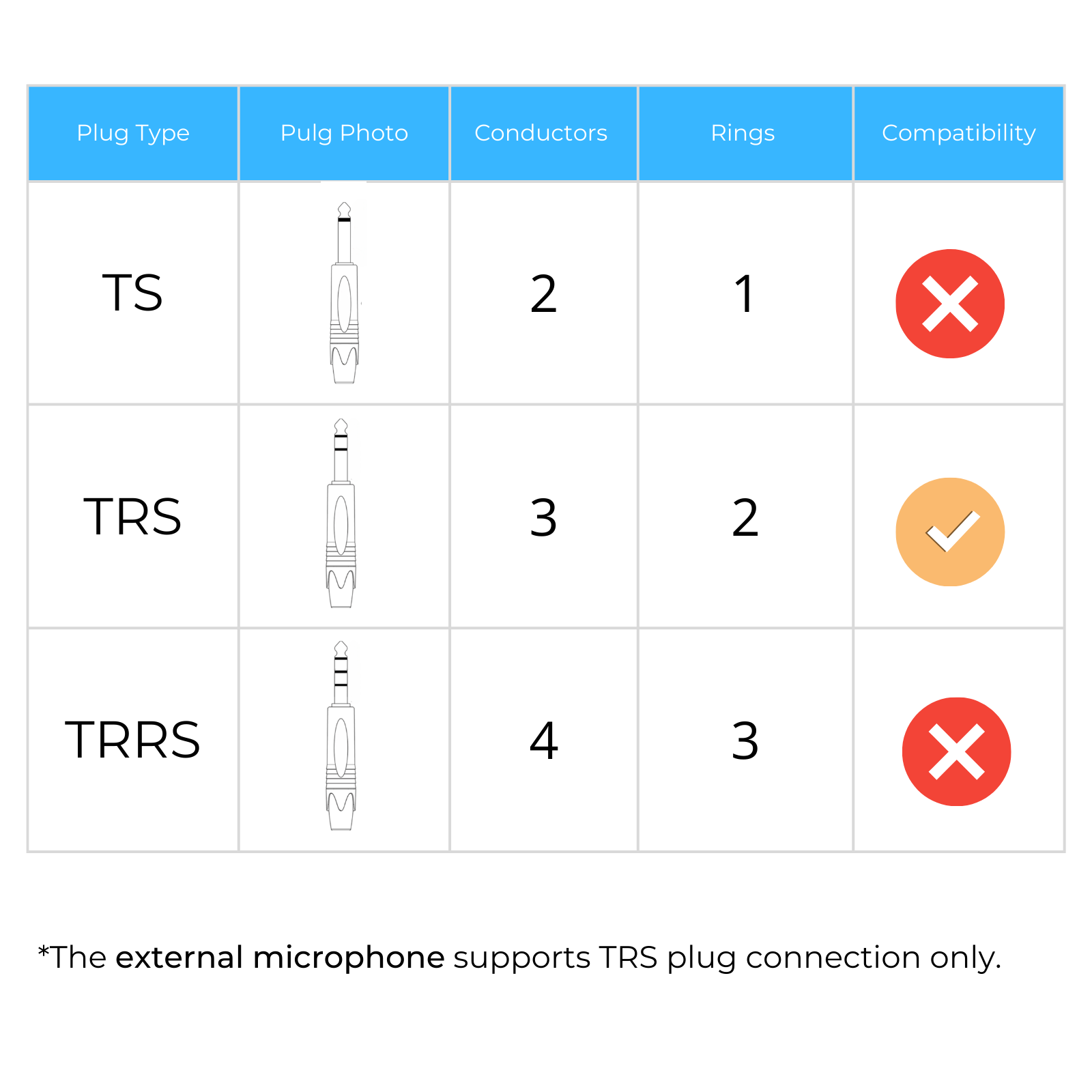

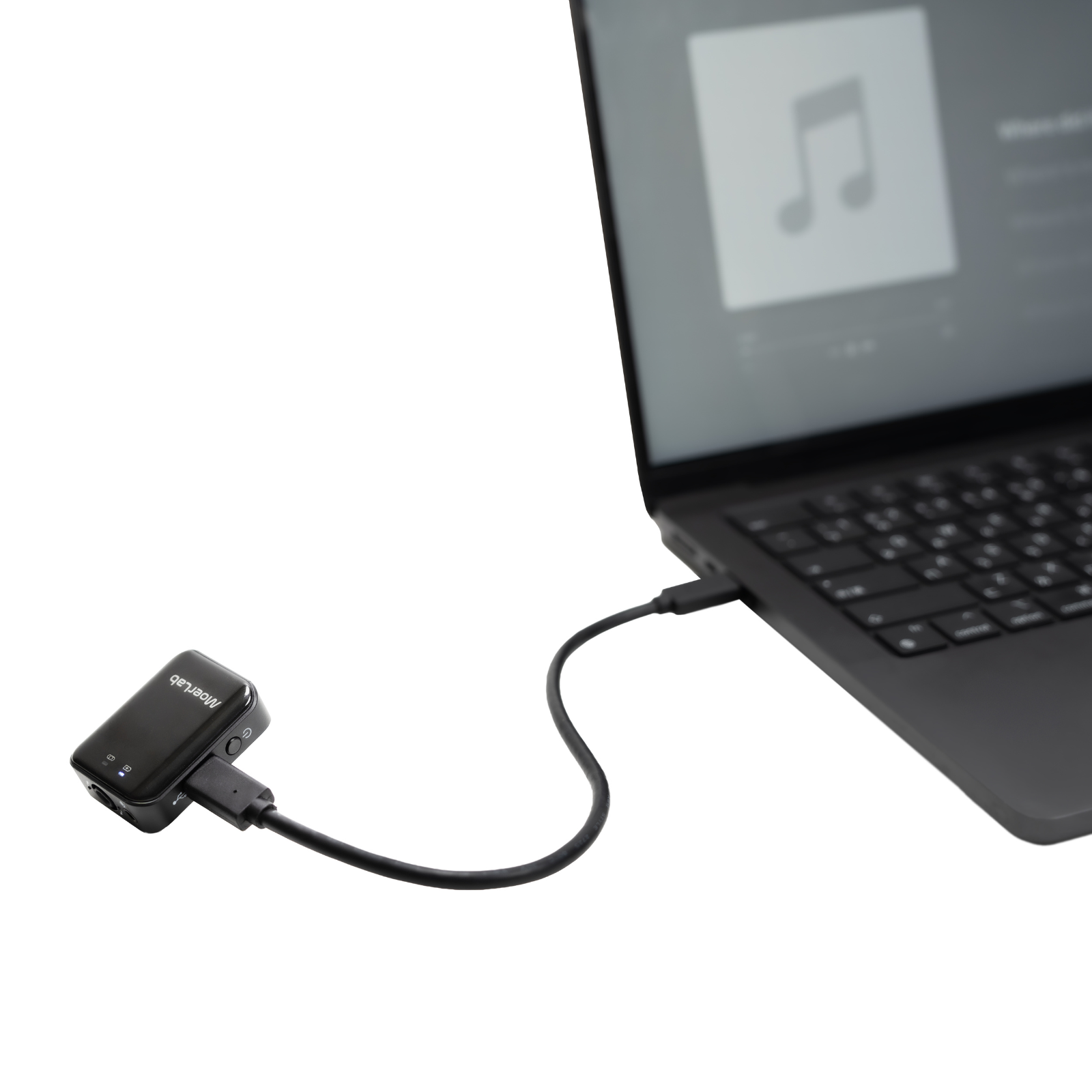

- Flexible audio inputs: 3.5mm Line-In, USB, and built-in omnidirectional microphone
PC Tool Support
- Configure device settings and audio mode profiles via PC Tool

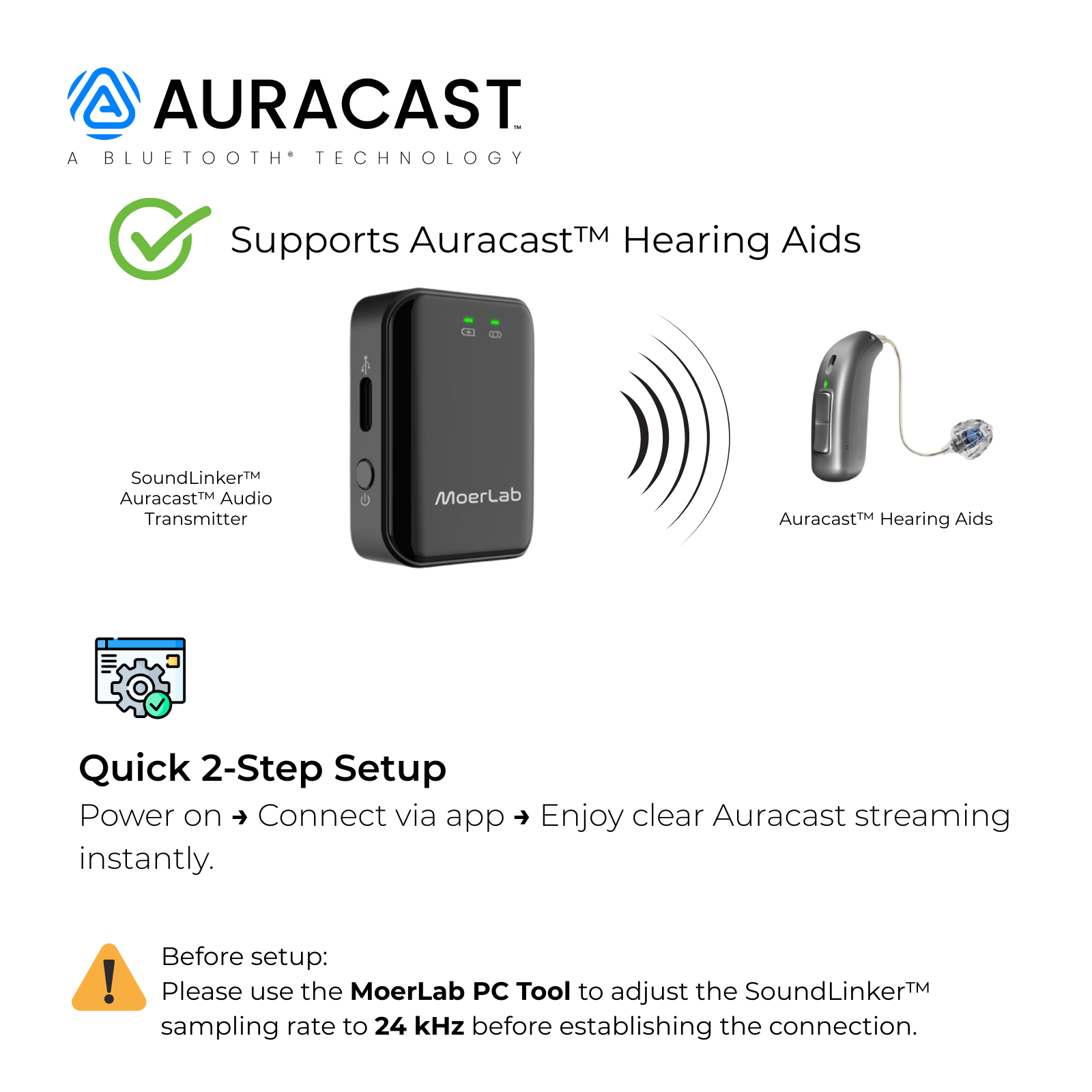

- Switch sampling profiles between LC3-HQ (48kHz / 24-bit) and LC3-SQ (24kHz / 16-bit)
- Ideal for deployment and on-site tuning for venues and installations
- How MoerLab PC Tool Works (Demo Video)
- Download MoerLab PC Tool
Specifications
| Model | AMP10 |
|---|---|
| Bluetooth Version | 5.3 |
| Bluetooth Encoder | SBC / AAC / LC3 |
| Operation Modes | CIS Mode / Auracast™ Broadcast (BIS) |
| Output Power | 30 mW @ 32Ω |
| Transmitting Power | ≤ 10 dBm |
| Sampling Rate | Standard: LC3-HQ (48 kHz / 24-bit) Optional: LC3-SQ (24 kHz / 16-bit) Manual switching supported |
| Audio Input | 3.5mm Line-In / USB / Built-in Microphone |
| Microphone | Omnidirectional |
| Latency | Approx. 40 ms |
| Battery Capacity / Charging Time | 350 mAh / Approx. 2 hours |
| DC Input | 5V / 100 mA |
| Battery Protection | Built-in overcharge and over-discharge protection |
| Operation Time | BIS Mode: Up to 7 hours CIS Mode: Up to 20 hours |
| Transmission Distance (Open Space) | BIS Mode: Up to 70 m CIS Mode: Up to 30 m |
| Dimensions | 47.3 × 36.3 × 21.2 mm (including back clip) |
*Note: SoundLinker™ operates in Auracast™ BIS (broadcast) and CIS (1-to-1) modes and does not function as a traditional Bluetooth Classic transmitter. For CIS connections, the receiving device must support Bluetooth® LE Audio with CIS.
